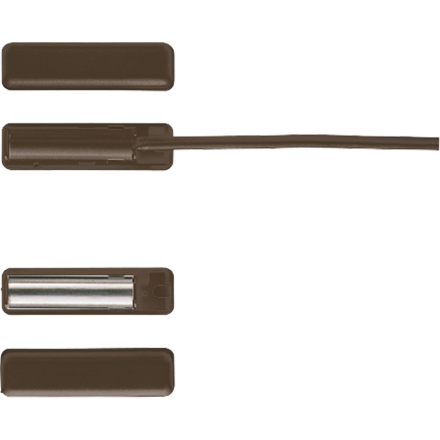

FUS4410BR Магнитный контакт; коричневый

Описание:

A sealed tubular glass envelope protects the magnet contact (reed contact) against dust and water.
The reed contact is actuated by means of a permanent magnet.
For installation in steel profiles (magnetic material) only block reed contacts can be used.
Included in delivery:
2 surface-mounted housings, 2 caps,
3 spacers 2 mm
1 spacer 6 mm
Connection to :
with binary input 8-gang, e.g. ref.-no.: , or push-button interface, e.g. ref.-no.: or , min. 2-wire, e.g. J-Y(St)Y 2x2x0,8

Тип контактов: make contact Switching voltage: макс. 100 В DC Ток переключения: макс. 0,5 A Contact rating: макс. 10 Вт или 10 ВA Transition resistance: 0,15 Ом Permissible operating voltage: макс. 40 V Connection cable: LIYY 2 x 0.14 mm, 3.2 mm (length 3 m) Размер: Contact = 32 mm x 8 mm Magnet = 30 mm x 6 mm AINICo 5 Housing (LxBxH) = 54 x 13 x 13 mm
