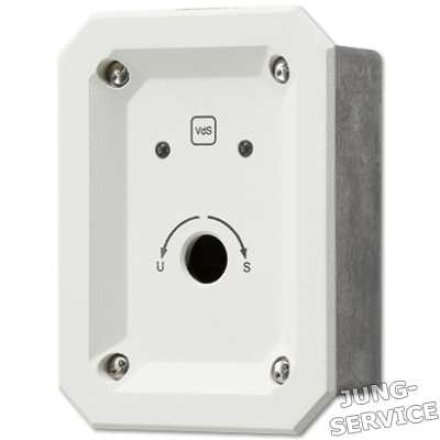

DAS4300U Элемент сигнализации

Описание:

for activating and deactivating of alarm systems

Housing, front plate: aluminium (precision casting)
Dimensions of front plate (W x H x D): 101 x 135 x 3 mm
Dimensions of flush housing (W x H x D): 79 x 113 x mm
profile cylinder lock is not included
wired sealed housing for indoor and outdoor use either permanent or pulse contact two LED for individual wiring buzzer for acknowledgement or refusal tear-off and lift-off contact against sabotage protection against drilling
Connecting key switches to :
a) via binary input 8-gang, e.g. ref.-no. or push-button interface
e.g. ref.-no. or to evaluate active/inactive state
b) acknowledge signal (buzzer or LED via switch actuator central unit) 6-gang,
e.g. ref.-no. (12 V DC from central unit)
c) in total min. 6 wires

Номинальное напряжение: 9 ... 15 В DC Номинальное напряжение: 12 B DC Current consumption per LED: approx. 10 mA Current consumption buzzer: около 25 mA Buzzer: buzzer 12 V 85 dBA / 10 cm Permissible load of all contacts: макс. 60 V / 0,5 A Защита: IP 54
