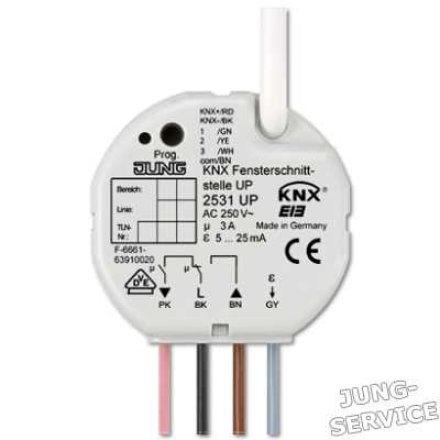

2531UP
Артикул: 2531UP
Наличие на складах:
1) Склад Нахимовский 24:
можем отгрузить прямо сейчас, до 19:00 (сб-вс - выходной)!
можем отгрузить прямо сейчас, до 19:00 (сб-вс - выходной)!
0 шт.
2) Склад партнёра:
можем отгрузить через 2 дня, обращайтесь!
можем отгрузить через 2 дня, обращайтесь!
0 шт.
3) Склад удалённый:
можем отгрузить завтра (сб-вс - выходной)!
можем отгрузить завтра (сб-вс - выходной)!
0 шт.
ЦЕНА ПО ЗАПРОСУ
ПОД ЗАКАЗ
Описание:
3 binary inputs1 blinds output, 1 output "TRIAC" (heating)
Product characteristics
- Switching of venetian blinds, awnings and similar hangings with AC 230 V~
- Switching of electrothermal valve drives
- Installation into standard wall box with 60 mm
- Terminals for connection are included
- Three binary inputs for floating contacts, can be used as satellite inputs for local control
- Power supply via bus, no additional power supply necessary
Blinds function
- Direct control of blind position
- Direct control of louvre angle
- Feedback of movement, blind position and louvre position
- Forced position by superior control
- Security function: 3 independent wind alarms, rain alarm, frost alarm
- Sun protection function
Function of valve drives
- ON/OFF operation mode or PWM operation mode
- Valve drive types "normally open" or "normally closed" can be controlled
- Overload-proof, short-circuit proof
- Protection against blocked valves
- Forced position
- Cyclical monitoring of input signals can be parameterized
PWM operation mode: electrothermal valve drives have only 2 positions: "open" and "closed". The PWM mode has a quasi-continuous behaviour by means of switching ON and OFF during the cycle time of the valve drive.
Технические характеристики
|
|
