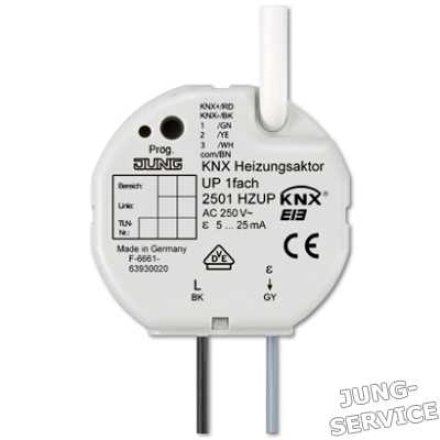

2501HZUP

Описание:

3 binary inputs
1 output "TRIAC"
ETS product family: Heating, A/C, Ventilation
Product type: Valve

Product characteristics

• Switching of electrothermal valve drives
• Installation into standard wall box with 60 mm
• Terminals for connection are included
• Three binary inputs for floating contacts, can be used as satellite inputs for local control
• Power supply via bus, no additional power supplay necessary

Function of valve drives

• ON/OFF operation mode or PWM operation mode
• Valve drive types "normally open" or "normally closed" can be controlled
• Overload-proof, short-circuit proof
• Protection against blocked valves
• Forced position
• Cyclical monitoring of input signals can be parameterized

PWM operation mode: electrothermal valve drives have only 2 positions: "open" and "closed". The PWM mode has a quasi-continuous behaviour by means of switching ON and OFF during the cycle time of the valve drive.

Номинальное напряжение: AC 230 /240 В ~, 50/60 Гц Switching voltage: AC 250 В ~ Диапазон рабочих температур: 5 ... +45 °C Температура хранения/транспортировки: 25 ... +70 °C Heating output     тип контактов: semiconductor (triac),     Switching current: 5 ... 25 mA     Switch-on current: max. 600 мA (2 с)     Number of drives per output: макс. 2 Управляющий кабель: YY6x0.6     Input type: floating contact     суммарная длина кабеля: макс. 5 м     Voltage satellite inputs: approx. 5 V Размеры ( x В): 53 x 28 мм Подключение: screwles terminals     одножильный провод: 1 ... 2,5 мм2 Питание KNX: DC 21 ... 32 В SELV Потребляемая мощность KNX: макс. 240 мВт Подключение KNX: terminal connected to control cable Тестовый знак: VDE
